Silicone products

LX-ST02 Automatic Silicone Coating Machine

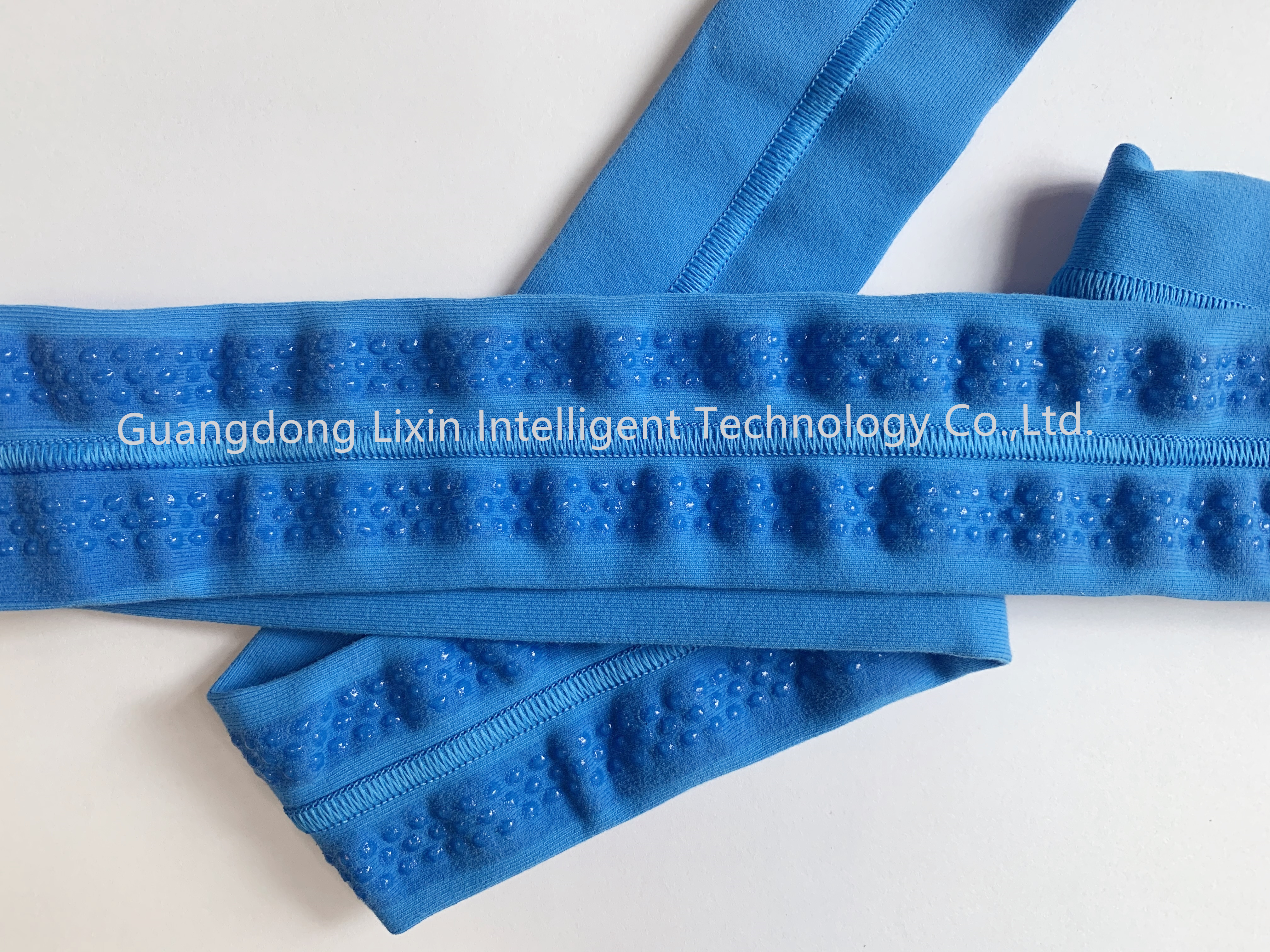

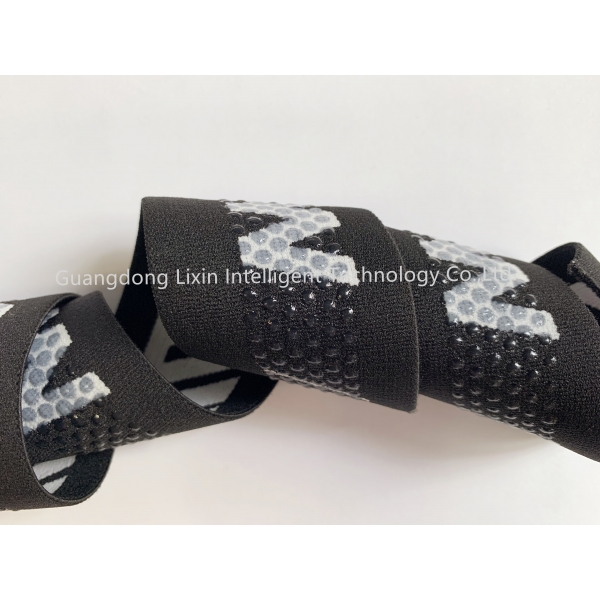

Automatic Silicone Coating Machine is suitable for non-elastic webbing, underwear shoulder strap, elastic webbing, and silicone coating on the surface of lace, which can play the role of anti-slip and anti-skid, and at the same time can increase the tensile force of the product, breathable, anti-skin allergy, soft webbing and skin contact Marks to protect the skin

Application material: liquid silicone


It can realize linear, wavy and cross-shaped glue dispensing
. The operation of the equipment is simple and convenient, saving manpower
Low equipment failure rate and high output (up to 1200m / h)
The equipment is equipped with an automatic coloring system, which can add various color pastes and flavors to the silicone


    Configuration structure:


    First, Glue supply system:

    1. Adopt frequency conversion energy-saving motor.

    2. The gear pump adopts German technology high-precision gear pump to ensure accurate and stable feeding of rubber.

    Second, the head part:

    1. Adopt Japanese Mitsubishi PLC.

    2. Adopt WEINVIEW man-machine interface (7 inches), a world-class brand.

    3. The main control motor adopts Japanese Panasonic servo motor, accurate and stable feeding system, no noise.

    4.Adopt high-precision dispensing platform.

    5. Adopt Hailip frequency converter.

    6. Adopt Japan Omron intermediate relay.

    Third Body:

    1. All adopt the carbon steel baking paint process, which is corrosion-resistant, scratch-resistant, dirt-resistant and elegant.

    2. The whole machine adopts automatic balance tension control.

    3. The chassis body has a thermal insulation design to maximize energy saving.


    Machine Parameter
    Model Max Tape Width
    Max Speed of Tape-walking
    Oven Measurement
    Oven Operation Temperature
    Figure Measurement
    Weight
    Air Requirement
    Power
    LX-ST02 120mm(each tapes 60mm) 20m/min L2000×W1380×H2000mm 50-120℃ L2000×W1380×H900mm 800kg 6kg/cm² 8kw/380V  AC
